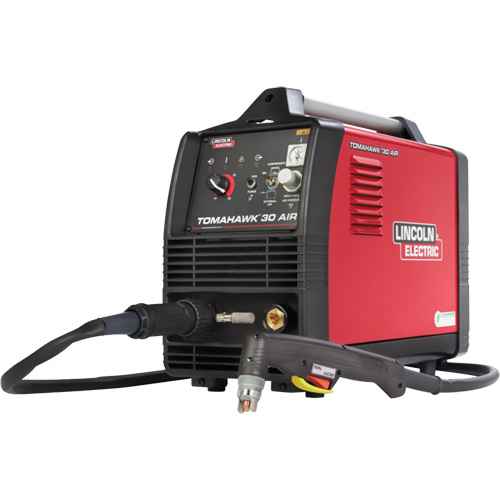

Tomahawk® 30 AIR Plasma Cutter with 10' Hand Torch & Built-In Compressor (TTV731)

ID produit (Product ID): TTV731
Marque (Brand): Lincoln Electric
Catégorie (Category): Safety
Sous-catégorie (Sub-category): Plasma Cutters & Plasma Cutter Kits
Spécifications supplémentaires (Additional Specs): Includes (1) Tomahawk 30 AIR Plasma Cutter; (1) Internal Air Compressor (External Air Connection also Standard); (1) K5537-1 LC30 Hand Torch and 10 ft (3 m) Cable; (3) KP2842-1 Electrode; (3) KP2842-6 Nozzle 30A; (2) KP2842-4 Swirl Ring; (1) KP2842-3 Retaining Cap (Internal Air-2 Holes); (1) KP2842-5 Drag Spacer; (1) KP2842-7 Retaining Cap (Internal Air- 6 Holes); (1) Air Regulator and Pressure Gauge; (1) Internal Water Separator; (1) Work Clamp and Cable; (1) Shoulder Strap; (1) Input Power Cord Rated Output #1A (Current/Voltage/Duty Cycle) 25A/90V/100% Rated Output #1B (Current/Voltage/Duty Cycle) 30A/92V/60% Input Current at Max Rated Ouput #1 16A Machines Processes Plasma Cutting Max Rating 30A Gas Supply Air or Nitrogen Gas Pressure Required 80 - 110 PSI (6 -7.5 Bar) Output Range 15-30A
Attributs (Attributes): Voltage Input Power 230 V Phase Input Power 1 Ph Hertz Input Power 60 Hz
Fonctionnalités (Features): Cuts mild and stainless steel precisely, and can be used with either external or internal compressor Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available Continuous Output Control – Focus the arc for different material thickness Touch Start System – Reliable plasma arc initiation without high frequency Rapid Arc Restrike – Fast cutting through gaps, even expanded metal Front Panel Purge Control – Makes it easy to set the airflow rate without initiating the plasma arc Cool Operation, Long Consumable Life - Enhanced swirling airflow keeps the electrode and tip cool and increases the life of consumables Added Safety – The Parts-in-Place system detects correct installation of consumables and torch Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations
Description de l’unité (Unit Description): Each
