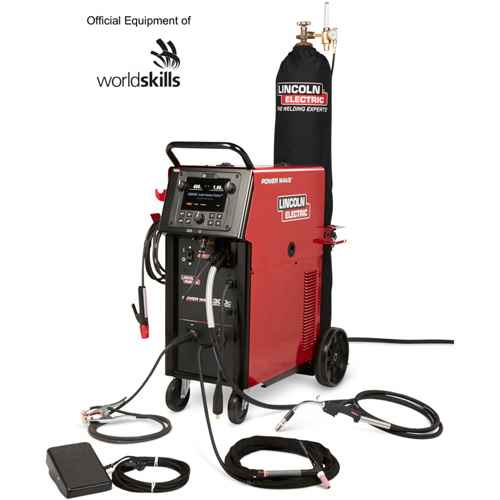

Power Wave® 300C Advanced Educational One-Pak® (TTV790)

ID produit (Product ID): TTV790
Marque (Brand): Lincoln Electric
Catégorie (Category): Safety
Sous-catégorie (Sub-category): MIG Welding Machines
Spécifications supplémentaires (Additional Specs): Includes Power Wave 300C Advanced (K4488-1), 10ft (3.0m) Input Power Cord, Magnum PRO Curve 300 Gun Ready-Pak (K2951-2-6-45), Harris Flowmeter/Regulator and Hose Kit (3100856), 10ft Work Lead, PTA-17F TIG Torch Ready-Pak (12.5 ft 1 pc.) (K1782-14), Foot Amptrol - 25 ft (7.6M) 12-Pin (K870-2), Stick Electrode Holder Cable (w/ Twist Mate) (K2374-1), 0.035/0.045 Combination V Groove Drive Rolls (Included in Wire Drive Assembly) (KP1696-1) Weight 226 lbs. Max. Rating 350 A Communication Technology ArcLink Work Lead Connector Type Dinse Work Cable Length 10' Accessories Communication Connector Type 12-Pin Wire Feeders Processes MIG, Pulsed MIG, MIG-STT, Flux Cored Output Range 5-350 A
Attributs (Attributes): Voltage Input Power 230 V/208 V/380 V/460 V/575 V/415 V Phase Input Power 1 Ph/3 Ph Hertz Input Power 50/60 Hz
Fonctionnalités (Features): Industry’s only true 300 Amp, 100% Duty Cycle, All- Process Machine SMAW, GTAW, GMAW, FCAW, CAG processes, with high-frequency and AC capabilities as well as access to advanced processes such STT®, Rapid Low Fume Pulse® All Power Wave® systems come standard with access to Lincoln Electric Power Wave® Manager and Lincoln Electric Checkpoint® Production Monitoring allowing for advanced remote configuration, process control, and quality assurance Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase Welding output remains constant through the entire input voltage range Exceptional welding performance with high power factor and efficiency Features Surge Blocker™ Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current) Ready-to-Run™ design features for simple and straightforward operation, including cable management hooks, integrated cart with tilting bottle rack, and Twist-Mate™ TIG connection and gas solenoid Only runs when needed to minimize noise and energy consumption
Description de l’unité (Unit Description): Each
