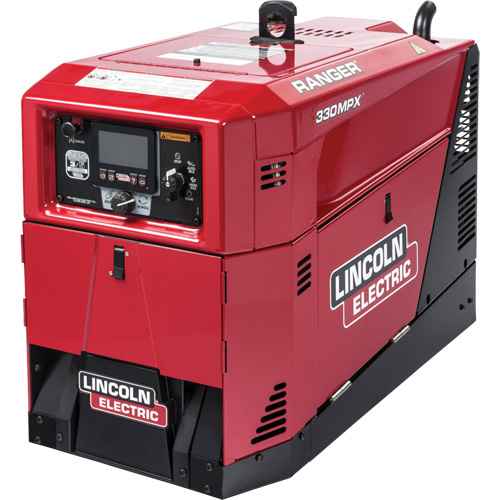

Ranger® 330MPX Welder/Generator Engine Drive (Kohler®) (TTV725)

ID produit (Product ID): TTV725
Marque (Brand): Lincoln Electric
Catégorie (Category): Safety
Sous-catégorie (Sub-category): MIG Welding Machines
Spécifications supplémentaires (Additional Specs): Dimensions 26"x 20"x 36 in Net Weight 446 lbs (202 kg) Machines Processes Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G) IEC Rating 292A/31.7V/100% @ 104°F (40°C) Max Rating 330A/28V/100% @ 104°F (40°C) Output Range by Mode CC-Stick: 35 – 330 A, Downhill Pipe (CC): 25-330 A, Touch Start TIG: 25 – 330 A, CV-Wire: 14 – 40 V, Arc Gouging: 90 – 330 A Single Phase Auxiliary Output 10,000 Watts Continuous, 120/240V Auxiliary Output Frequency 60 Hz Rated Gouging Carbon Diameter 3/16"(5.0 mm)
Fonctionnalités (Features): Premium welder/generator with excellent multi-process capability for stick, TIG, MIG, gouging, and pipe applications Has a 20 percent smaller footprint and is 25 percent lighter than other machines in its class It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site Digital user interface offers a suite of advanced technology that improves weld performance and productivity Up to 60% quieter than other machines in its class to enhance safety and comfort in the workplace Ready.Set.Weld® technology' intuitive push-and-turn digital controls make setup a breeze Chopper Technology® provides easy starts, a smooth and consistent arc, and low spatter for optimal bead appearance ArcFX™ Technology provides instant graphical feedback on how settings affect the weld outcome CrossLinc™ Remote Technology communicates voltage control to the welding power source through one common weld cable Clean AC generator with 10 kW of continuous, consistent power to keep tools running without interruption Plenty of power at 330A/28V for 100% duty cycle to weld 1/4" 7018 electrode The maintenance screens allows the machine to record engine hours for proper service and maintenance Enable the supervisor and operator passcode protection to lock settings and weld modes Engine Driven Weld Modes include downhill pipe, touch-start pulse TIG, and pulse spool gun Kohler® OHV Command CH740 2-cylinder air-cooled gasoline engine
Description de l’unité (Unit Description): Each
