ID produit (Product ID):
UP588
Marque (Brand):
Vibrasystems
Catégorie (Category):
Safety
Sous-catégorie (Sub-category):
Vibration Isolator
Spécifications supplémentaires (Additional Specs):
A mm 150 B mm 100 H mm 50+/-5 Max. Load lbs. 9000 Note Neoprene top and bottom included.
Attributs (Attributes):
Overall Width 3.93" Overall Length 5-9/10"
Fonctionnalités (Features):

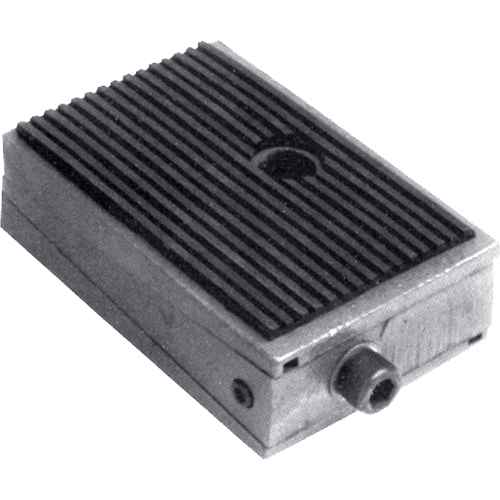

Designed for the installation and precision levelling of heavy industrial machinery 3 machined wedges are mounted and held together by a horizontal adjusting bolt A lock screw secures the mount in the levelled position A special opening allows for bolting of the machine to the floor; ; Note: Max. levelling is 1/4" (6 mm). If more height is required use a shim plate.
Description de l’unité (Unit Description):
Each
