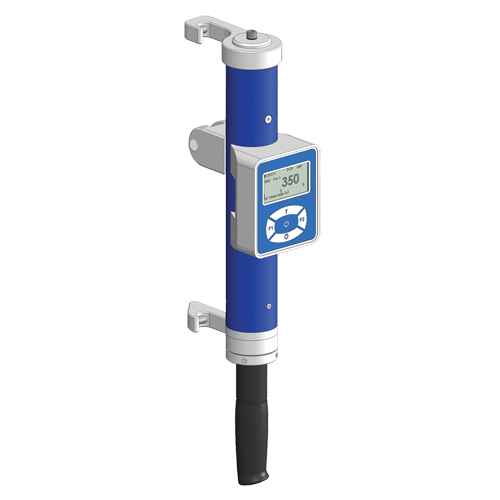

Dynarope Small Capacity Tensiometer HF 37/1/LPT (LV290)

ID produit (Product ID): LV290
Marque (Brand): Tractel
Catégorie (Category): Safety
Sous-catégorie (Sub-category): Wire Rope Hoist Tensiometer
Spécifications supplémentaires (Additional Specs): Min. Wire Rope Diameter 3/16"
Attributs (Attributes): Working Load Limit Range 200 lbs - 3000 lbs. (100 kg - 1500 kg.) Wire Rope Diameter 1/2" Increments 2 lbs. (1 kg)
Fonctionnalités (Features): Designed for measuring forces in pretension wire ropes that cannot be dismantled and for which tension must be known or confirmed Fits directly onto the tensioned wire rope and is simply held in position by turning a handle Device is comprised of a load cell with strain gauges and a display driven by a microprocessor Display of the force measured by the load cell takes into account parameters you enter such as the diameter, composition and structure of the rope Accuracy:<1% of nominal capacity Operating temperature from -4 to 140°F (-20 to 60°C) Displays mass or force Protection: IP 65 (NEMA 4) FOB Tractel, Montreal, Qc
Description de l’unité (Unit Description): Each
