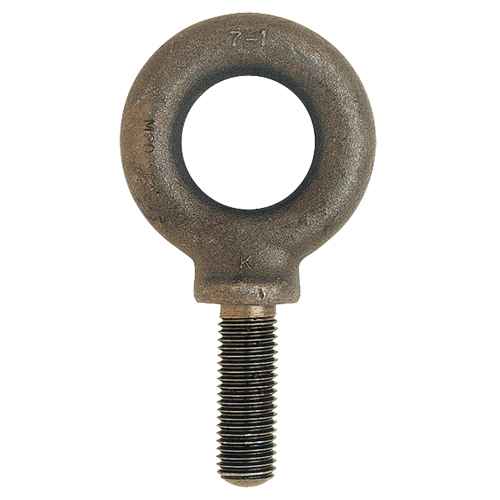

Eye Bolt (LU728)

ID produit (Product ID): LU728
Marque (Brand): Gray Tools
Catégorie (Category): Tools
Sous-catégorie (Sub-category): Eye Bolt
Spécifications supplémentaires (Additional Specs): I.D. Eye 25" O.D. Eye 43 mm Thread size mm, UNC-2A M8 x 1-1/4" Overall Dimensions 3-1/4" L x 1-3/4" W x 3/4" H Weight 0.17 lbs.
Attributs (Attributes): Working Load Limit 1110 lbs. (0.555 tons) Finish Uncoated Natural Finish Eye Diameter 43 mm Shank Length 31.7 mm Body Style With Shoulder Shank Threading Fully Threaded
Fonctionnalités (Features): Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline Never apply loads greater than rated capacity
Description de l’unité (Unit Description): Each
