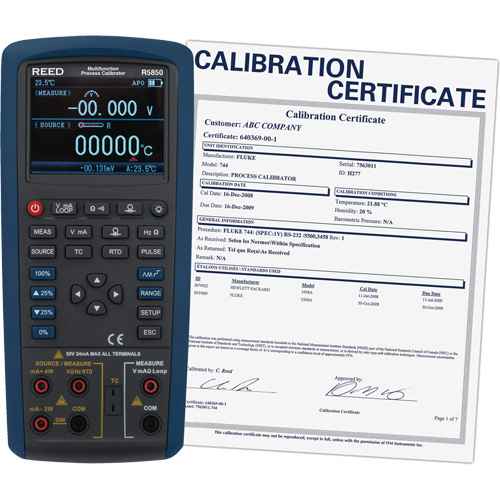

ID092 (ID092)

ID produit (Product ID): ID092
Marque (Brand): Reed Instruments
Catégorie (Category): Tools
Sous-catégorie (Sub-category): Multiprocess Calibrator
Spécifications supplémentaires (Additional Specs): DC Voltage Range: 50, 500mV, 30V (upper display), 50V (lower display); Resolution: 0.001, 0.01, 1mV, 0.001V; Accuracy: 50mV: ±(0.02% +10), 500mV: ±(0.02% +5), 30V (upper display): ±(0.02% +2), 50V (lower display): ±(0.02% +2) DC Current Range: 20mA at 0 to 24mA, Resolution: 0.001mA, Accuracy: ±(0.02% +2) Loop Current Range: 20mA (loop) at 0 to 24mA, Resolution: 0.001mA, Accuracy: ±(0.02% +2) Resistance Range: 500, 5000Ω, Resolution: 0.01, 0.1Ω, Accuracy: ±(0.05% +10) Frequency Range: 100Hz, 1, 10, 100kHz, Resolution: 0.01, 0.1, 1Hz, Accuracy: ±(0.01% +1) Includes Multifunction Process Calibrator; Test Leads; Test Clips; Type K Thermocouple Wire Probe; USB Cable; Power Adapter; Carrying Case
Attributs (Attributes): Portable/Bench top Portable Data Logging/ Without Data Logging Without Data Logging No. of Processes 5
Fonctionnalités (Features): Rugged design stands up to field use Measures/Sources volts, mA, RTDs, thermocouples, frequency, and ohms 0.02% output and measurement accuracy Easy-to-read measure/source screen lets you view input and output simultaneously Perform fast linearity tests with auto step and auto ramp features Powers transmitters during the test using a loop supply with simultaneous mA measurement Measures and outputs 10 types of RTDs and 12 types of TC signals Rechargeable Ni-MH battery Adjustable brightness provides better visibility in poor light Store frequently-used test setups for later use Low battery indicator and auto shut-off
Description de l’unité (Unit Description): Each
