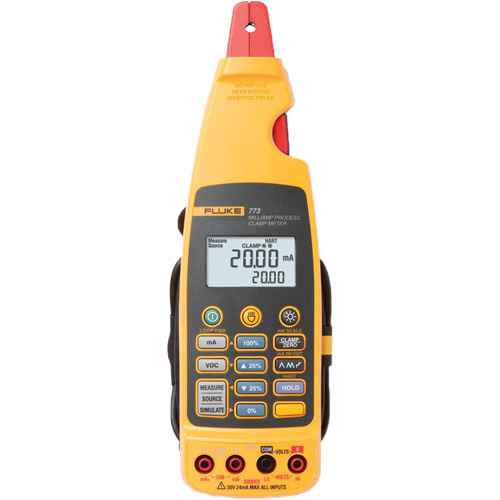

IB097 (IB097)

ID produit (Product ID): IB097
Marque (Brand): Fluke
Catégorie (Category): Office
Sous-catégorie (Sub-category): Loop Calibrator
Spécifications supplémentaires (Additional Specs): Accuracy 0.002 Resolution 0.01 mA Sensitivity 0.01 mA Max. Diameter of Measurable Conductor 4.5 mm (0.177") Operating Temperature -10 - 50°C IP Rating IP40 Approvals EN61326-1 Manufacturer's Warranty 3 Years (Electronics), 1 Year (Cable & Clamp Assembly)
Attributs (Attributes): Display Digital
Fonctionnalités (Features): Loop calibrator that measures 4 to 20 mA signals without breaking the loop Sources 4 to 20 mA signals for testing control system I/O or I/Ps Measures DC voltage to verify 24 V power supplies or voltage I/O signals Measures mA signals for PLC and control system analog I/O Simultaneously measures the mA signal with the clamp and sources a mA signal Features a detachable clamp with extension cable for measurements in tight locations Captures and displays changing measurements with hold function Offers mA output linear ramp or 25% step output Extends battery life with auto-off and backlight timeout Enables milliamp signal logging to a separate logging device without breaking the loop Measurement spotlight to illuminate hard to see wires in dark enclosures Measures 10 to 50 mA signals in older control systems using the 99.9 mA range Automatically changes the 4 to 20 mA output for remote testing
Description de l’unité (Unit Description): Each
