IB114 (IB114)

ID produit (Product ID): IB114
Marque (Brand): Fluke
Catégorie (Category): Office
Sous-catégorie (Sub-category): Insulation Tester
Spécifications supplémentaires (Additional Specs): Max. Test Voltage 5 kV Resistance Range 0 - 1 TΩ Accuracy -0%, +10% at 1 mA load current Leakage Current Range 1 nA - 2 mA Capacitance Range 0.01 μF - 15 μF Timer 0 - 99 min. System Requirements Windows XP, Windows Vista, Windows 7 or Windows 8 Safety Rating CAT III 1000 V, CAT IV 600 V IP Rating IP40
Attributs (Attributes): Display Type Digital

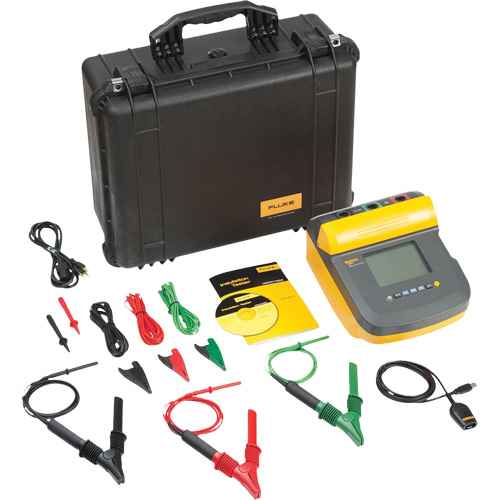

Fonctionnalités (Features): Quickly configure, start and stop tests remotely, a safe distance away from any operating, energized equipment, using Fluke Connect® and a smart phone Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values Fluke Connect® saves test results to the cloud for analysis and preventive maintenance Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup Guard system eliminates the effect of surface leakage current on high-resistance measurements Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined label for easy recall Long battery life gives the user over 750 tests between charges Ramp function for breakdown testing Includes: Test cables with alligator clips (red, black, green), Infrared adapter with interface cable, AC power cord, IP67 hard case, Certificate of calibration, Manuals and CD-ROM, Software license agreement, Registration card, Heavy-duty alligator clip leads
Description de l’unité (Unit Description): Each
