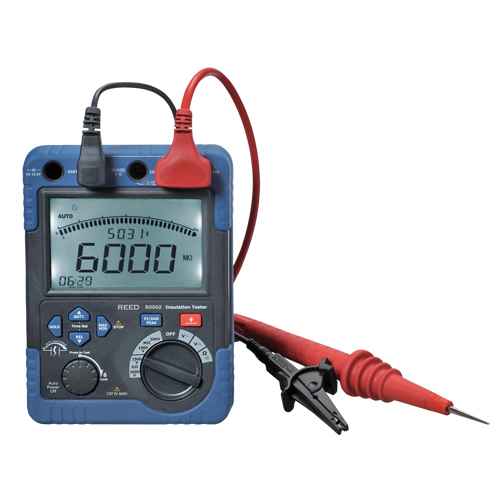

IA855 (IA855)

ID produit (Product ID): IA855
Marque (Brand): Reed Instruments
Catégorie (Category): Tools
Sous-catégorie (Sub-category): Insulation Tester
Spécifications supplémentaires (Additional Specs): Insulation Resistance - Test Voltages 500V, 1000V, 2500V, 5000V DC Insulation Resistance - Measurement Range 0 to 60.0GΩ Insulation Resistance - Accuracy ±5% rdg. +3 dgt. Insulation Resistance - Open Circuit Voltage +20%, -0% Insulation Resistance - Rated Current 1 to 1.2mA Resistance Tests - Measurement Range 0.1 to 6000Ω Resistance Tests - Accuracy ±1.5% rdg. +10 dgt. Resistance Tests - Continuity Test Buzzer sounds at <50Ω Resistance Tests - Short Circuit Current ≥200mA
Attributs (Attributes): Display Type Digital
Fonctionnalités (Features): Wide range measurements from 500V to 5000V and up to 60GΩ Sources up to 1.2mA current during tests to offset capacitance load Polarization index measurement (PI) Dielectric absorption ratio measurements (DAR) Time set measurement function Auto-discharge function and voltage output warning function Live circuit warning symbols plus audible warning Live circuit detection prevents insulation test if >30V is detected Max/Min, Peak, Relative value and Data Hold functions 6000-count digital display with bargraph and backlight Meets IEC61010-1 Cat. IV 600V safety standards
Description de l’unité (Unit Description): Each
