HC062 (HC062)

ID produit (Product ID): HC062
Marque (Brand): PTC Instruments
Catégorie (Category): Safety
Sous-catégorie (Sub-category): Hardness Tester
Spécifications supplémentaires (Additional Specs): Indicator Diameter 1.6" Accuracy ± 1.5 points Dimensions 6.75 x 1.06" (17.1 x 2.7 cm) Weight 12 oz. (340 g)
Attributs (Attributes): Display Type Analogue

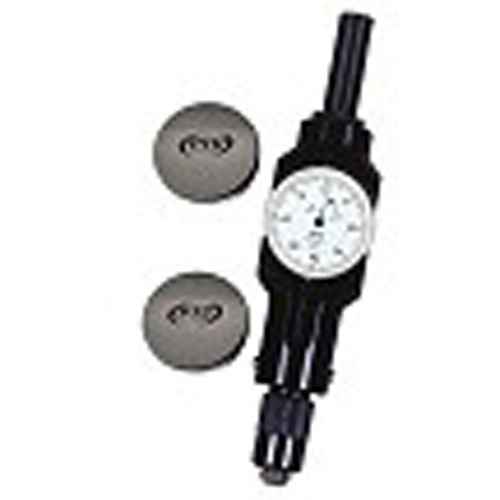

Fonctionnalités (Features): Economical way of grading and checking various metals in equivalent Rockwell C range of 20HRC to 67HRC Completely redesigned chassis made from aerospace aluminum houses a high quality displacement gauge Minimum sample thickness is 0.025" (6.35 mm) for most materials Shipped with factory-set preload, calibrated and ready to use Diamond tip indenter has been polished to a spherical radius of 0.004" and ground to an included angle of 60° Upper end (the shank) is the gripping area for insertion into a milling machine, drill press, or lathe Lower end is the load cell that extends up into the body of the hardness tester and houses a centreless ground precision spring which preloads the hardened steel indenter Direct reading analog dial is accurate to ±1.5 points The total force required to move the indenter through its full travel of 0.025" (6.35 mm) is 85 lbs. (38.56 kg) Includes: Rockwell C scale hardness tester, Test blocks (high and low range test blocks), Conversion chart, Carrying case
Description de l’unité (Unit Description): Each
