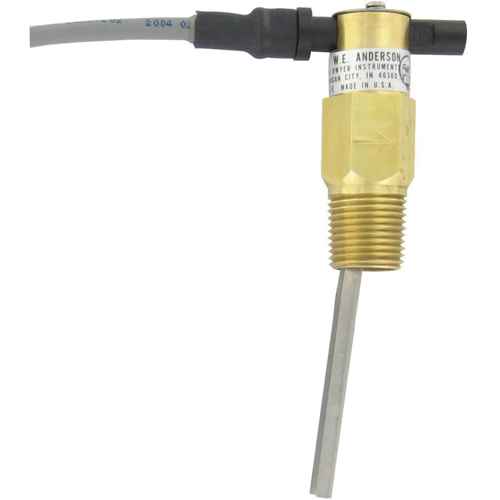

ID produit (Product ID):
HM508
Marque (Brand):
Dwyer
Catégorie (Category):
Safety
Sous-catégorie (Sub-category):
Flow Switch
Spécifications supplémentaires (Additional Specs):
Max. Pressure 150 PSIG Material Stainless Steel Body
Attributs (Attributes):
Operating Temperature 200°F (93°C)
Fonctionnalités (Features):
Designed to provide an inexpensive, reliable unit to monitor the presence or absence of flow in a system; Rugged, hermetically sealed reed switch is encapsulated in a polypropylene switch housing that fits into a standard heavy duty leak proof brass body or optional 303 stainless steel body ; Patented switch adjustment allows the user to change the switch to normally open (NO) or normally closed (NC) in the field merely by loosening two screws; Switch housing is located outside the process media, making switch change-over or maintenance easy without interruption of process flow; Wetted materials of brass, stainless steel and ceramic 8 magnet provide excellent chemical resistance and compatibility; Full size, trimmable stainless steel vane is provided with a removable laminated template; Template is calibrated for brass or ductile iron reducing tees and forged steel straight tee/bushing combinations ; Allows for field installation in pipelines from 1/2" to 2" diameter; Rated for pressures up to 2000 PSIG
Description de l’unité (Unit Description):
Each
