ID produit (Product ID):
ID153
Marque (Brand):
Extech
Catégorie (Category):
Safety
Sous-catégorie (Sub-category):

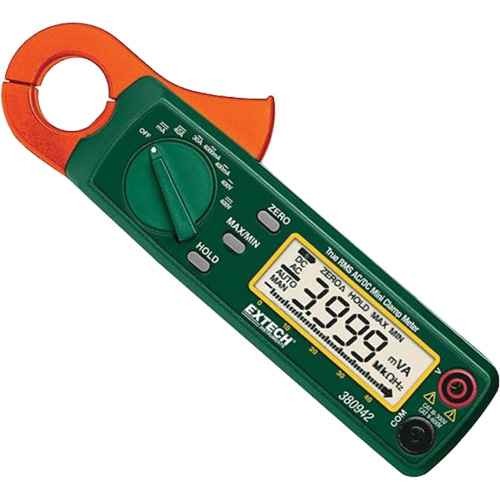

Clamp Meter
Spécifications supplémentaires (Additional Specs):
AC Current Range 400mA, 4A, 30A DC Current Range 4A, 30A AC/DC Voltage Range 400V Jaw Opening/Cable Size 0.9" (23mm)/4/0 AWG Dimensions 7.2 x 2.5 x 1.4" (183 x 64 x 36mm) Weight 6.2 oz. (190g)
Attributs (Attributes):
Voltage Readings AC/DC Current Readings AC/DC
Fonctionnalités (Features):
True RMS measurements where distortion may otherwise cause inaccuracies 30A range with 0.1mA (AC) and 1mA (DC) resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters Voltage measurements using test leads One touch "Auto Zero" for DCA measurements eliminates the need to turn a knob to zero adjust Measure current draw when conducting energy usage audits Large 4000 count LCD display with full function indication Fast 40 segment analog bargraph Data hold, Max/Min recall display CAT III 300V safety rating Small diameter jaw opening designed to reach into small areas Optional 3-prong AC Line Splitter enables safe and easy measurements on power cables with molded plugs (splits hot conductor from neutral and ground)
Description de l’unité (Unit Description):
Each
