ID produit (Product ID):
IC790
Marque (Brand):
Reed Instruments
Catégorie (Category):
Tools
Sous-catégorie (Sub-category):
Clamp Meter
Spécifications supplémentaires (Additional Specs):
AC/DC Current Range 60, 600, 1000A AC/DC Current Accuracy AC/DC: ±(2% rdg. +5 dgt.) AC/DC Current Resolution 0.01, 0.1, 1A Resistance Range 600Ω, 6, 60, 600kΩ, 6, 60MΩ Resistance Accuracy ±(1% rdg. +2 dgt.) 0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩ Capacitance Range 60, 600.0nF, 6, 60, 600µF, 6, 60mF Capacitance Accuracy ±(4.0% rdg. +5 dgt.) Capacitance Resolution 0.01nF, 0.1nF, 0.001μF, 0.01μF, 0.1μF, 0.001mF, 0.01mF Dimensions 10.7" x 3.2" x 1.7" (272 x 81 x 43.5mm)
Attributs (Attributes):
Voltage Readings AC/DC Current Readings AC/DC
Fonctionnalités (Features):

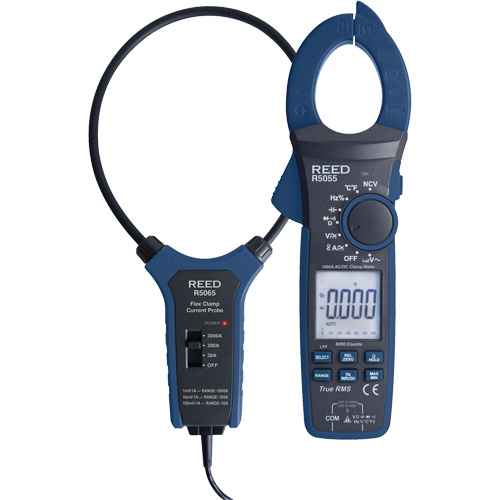

Measures AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, and contact temperature Comes equipped with an 18" flexible current probe that can expand AC current measurements up to 3000A 6000-Count backlit LCD display and analog bargraph plus built-in non-contact voltage detector with LED indicator Ergonomic design fits in your hand and can be used while wearing protective gloves and only weighs 15.8oz (447g) Built-in LED flashlight, durable double molded plastic housing, and low battery and over range indicators True RMS voltage and current for accurate measurements Low pass filter and low impedance (LoZ) modes Min/Max, display hold and relative mode Diode test and continuity check functions Cat. III 1000V, Cat. IV 600V safety rating Operating temperature of 32 to 122°F (0 to 50°C) and a storage temperature of 14 to 140°F (-10 to 60°C) Runs on 3 x AAA batteries and features an autoshut-off after 15 minutes CE and ETL product certifications AC/DC voltage range: 6, 60, 600, 1000V (AC), 600mV, 6, 60, 600, 1000V (DC) AC/DC voltage accuracy: ±(1.0% rdg. +8 dgt.) (AC), ±(0.5% rdg. +5 dgt.) (DC) AC/DC voltage resolution: 0.1mV, 0.001V, 0.01V, 0.1V, 1V Includes: REED 1000A True RMS digital clamp meter (R5055), REED 3000A Flexible 18" current probe (R5065), ISO Certificate with full data and uncertainties
Description de l’unité (Unit Description):
Each
