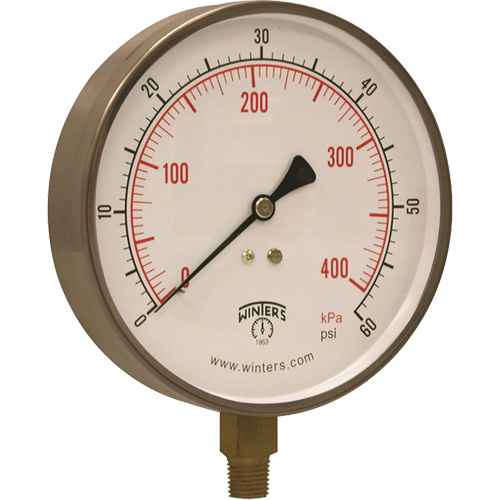

ID produit (Product ID):
YB899
Marque (Brand):
Winters
Catégorie (Category):
Tools
Sous-catégorie (Sub-category):
Pressure Gauge
Spécifications supplémentaires (Additional Specs):
Connection Thread 1/4" NPT Accuracy ±1% ANSI/ASME Grade 1A Manufacturer's Warranty 5 Years IP Rating IP52 Case & Ring Material 304 Stainless Steel Lens Material Acrylic Bourdon Tube Material Phosphor Bronze Over-Pressure Limit 25% for Pressures up to 1450 psi (9998 kPa), 15% for Pressures Over 1450 psi (9998 kPa) Working Pressure Maximum 75% of Full Scale Value
Attributs (Attributes):
Dial Diameter 4-1/2" Pressure Range 0 - 60 psi Connection Bottom Mount Dial Type Analogue
Fonctionnalités (Features):
Economical stainless steel case gauge with brass wetted parts Zero adjustment screw Restricted orifice ASME B40.100 compliant and CRN registered Also measures in kilopascals (kPa) Applications include commercial air, water and steam services (with syphon), and more
Description de l’unité (Unit Description):
Each
