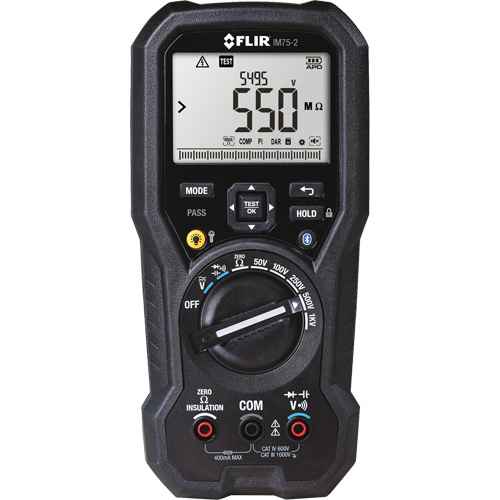

ID308 (ID308)

ID produit (Product ID): ID308
Marque (Brand): FLIR
Catégorie (Category): Safety
Sous-catégorie (Sub-category): Insulation Tester
Spécifications supplémentaires (Additional Specs): Insulation Resistance 4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits) AC Voltage 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits), 61 Hz to 500 Hz ± (2.0% + 5 digits) DC Voltage 1000.0 V ± (0.1% + 5 digits) Max. Bluetooth Range 10 m (32 ft) Memory 99 Storage Locations Battery Type (6) 1.5 V AAA Alkaline Batteries Certification(s) FCC Class B, CE, UL, UKCA, RCM Drop Test 3 m (9.8 ft) Operating Temperature 0°C to 50°C (32°F to 122°F)
Attributs (Attributes): Display Type Digital
Fonctionnalités (Features): Both an advanced multifunction digital multimeter and a premier handheld insulation tester with functions for installation, troubleshooting and maintenance for professionals Features several specialty insulation modes such as polarization index, dielectric absorption, and earth bond resistance Insulation tests can be performed instantly, continuously, and over a timed duration to allow for in-depth assessment The multi-color LED indicator in compare mode makes pass/fail determinations easy and visible Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing Advanced multifunction digital multimeter and premier handheld insulation tester for installation, troubleshooting and maintenance professionals Insulation voltage testing up to 1 kV, measuring insulation resistance from 4 M to 20 G Advanced variable frequency drive (VFD) filtering and dual display shows voltage and frequency at once True RMS DMM measurements features reliable performance and 1000 V range Powerful LED worklights eliminate the need for a flashlight in dim lighting Durable, double-molded construction with IP54 rating and 3 m drop tested Multi-color LED indicator with Compare Mode makes pass/fail determinations easy and visible Capture readings, create reports and easily share them with your team Set custom alarm thresholds to provide additional assurance of operating ranges while performing testing procedures
Description de l’unité (Unit Description): Each
