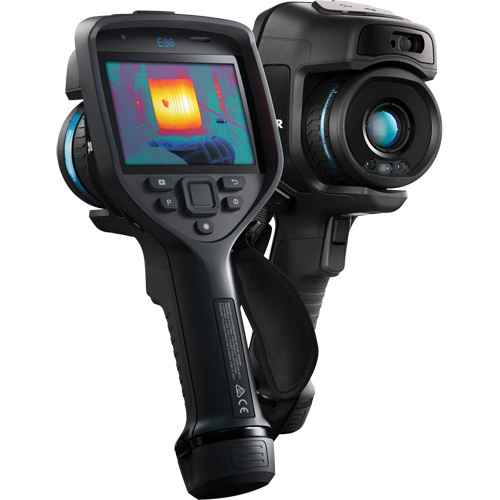

ID209 (ID209)

ID produit (Product ID): ID209
Marque (Brand): FLIR
Catégorie (Category): Safety
Sous-catégorie (Sub-category): Thermal Imager
Spécifications supplémentaires (Additional Specs): Accuracy ±2°C (±3.6°F) or ±2% of the Reading Field of view (FOV) 42° × 32° Colour Palettes Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava Focal Length 10 mm (0.39 in.) Image Frequency 30 Hz Min. Focus Distance 0.15 m (0.49 ft.) Spatial resolution (IFOV) 1.66 mrad/pixel Spectral Range 7.5-14 µm Battery Operating Time >2.5 hours at 25°C (68°F) & Typical Use
Attributs (Attributes): Display Size 4" Display Type Built-in Resolution 464 x 348 pixels Thermal Sensitivity 30 mK Temperature Range -20° - 1500°C (-4° - 2732°F)
Fonctionnalités (Features): This 464 x 348-pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies in electrical and mechanical assets Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images The onboard Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations The laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²) Interchangeable, auto-calibrating lenses - from telephoto to wide-angle - allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly Onboard integration with routing software, a built-in mic for voice annotation, and report generation features all help the camera streamline your workday
Description de l’unité (Unit Description): Each
