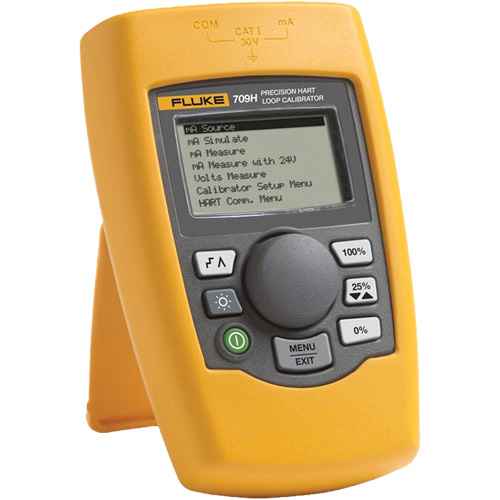

ID produit (Product ID):
IB191
Marque (Brand):
Fluke
Catégorie (Category):
Facility Maintenance
Sous-catégorie (Sub-category):
Loop Calibrator
Spécifications supplémentaires (Additional Specs):
Current Range 0 - 24 mA Voltage Range 0 - 30 V DC Accuracy 0.01% ± 2 Counts Loop Power 24 V DC Over-Voltage Protection 240 V AC Overload Current Protection 28 mA DC Approvals EN61326 Annex A (Portable Instruments) Dimensions 152 x 70 x 41 mm Weight 340 g
Attributs (Attributes):
Display Digital
Fonctionnalités (Features):
Communicates with and tests HART® smart instruments Intuitive user interface with quick-set knob for fast setup Includes built-in selectable 250 Ω resistor for HART® communication Features 24 V DC loop power with mA measure mode (-25% to 125%) Requires only simple two wire connection for all measurements Provides resolution of 1 µA on mA ranges and 1 mV on voltage ranges Provides auto shutdown to conserve battery life (adjustable up to 30 minutes) Offers variable step and ramp time in seconds Provides adjustable span selection Includes valve test functionality (simulates defined mA values with % keys) Quickly transfers calibration data for documentation in either (.csv) or (.txt) format with optional 709H/Track software/cable Includes: (1) 754-8016 alligator clip set, (1) 75X-8014 stackable lead set, (1) TP220-4201 test probe set, (1) AC280-5001 SureGrip™ hook clip set, (1) Soft case, (6) AAA batteries, (1) Product manual CD-ROM
Description de l’unité (Unit Description):
Each
