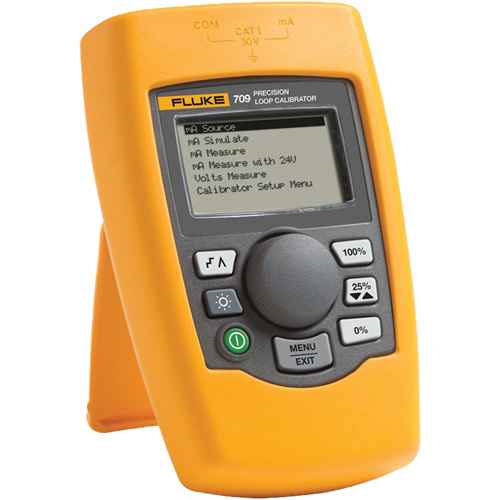

ID produit (Product ID):
IB092
Marque (Brand):
Fluke
Catégorie (Category):
Tools
Sous-catégorie (Sub-category):
Loop Calibrator
Spécifications supplémentaires (Additional Specs):
Current Range 0 - 24 mA Voltage Range 0 - 30 V DC Accuracy 0.01% ± 2 Counts Loop Power 24 V DC Over-Voltage Protection 240 V AC Overload Current Protection 28 mA DC Approvals EN61326 Annex A (Portable Instruments) Dimensions 15 x 9 x 3 cm (6 x 3.6 x 1.3") Weight 0.3 kg (9.5 oz.)
Attributs (Attributes):
Display Digital
Fonctionnalités (Features):
Intuitive user interface with quick-set rotary encoder knob for fast setup Includes built-in selectable 250 Ω resistor for HART® communication Features 24 V DC loop power with mA measure mode (-25% to 125%) Requires only simple two wire connection for all measurements Provides resolution of 1 µA on mA ranges and 1 mV on voltage ranges Provides auto shutdown to conserve battery life (adjustable up to 30 minutes) Offers variable step and ramp time in seconds Provides adjustable span selection Includes valve test functionality (simulates defined mA values with % keys) Includes: (1) AC175 alligator clip set, (1) TL75 test leads, (1) Soft case, (6) AAA batteries, (1) Product manual CD-ROM
Description de l’unité (Unit Description):
Each
