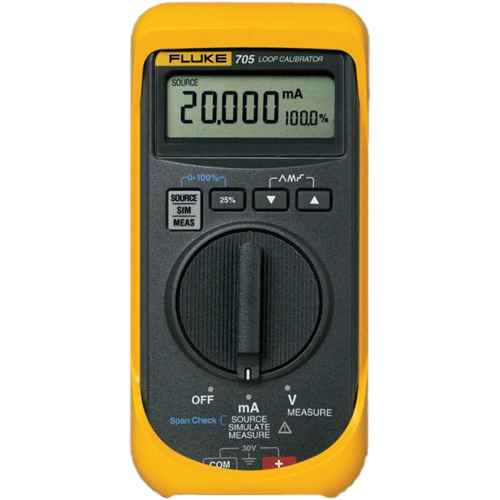

IB090 (IB090)

ID produit (Product ID): IB090
Marque (Brand): Fluke
Catégorie (Category): Tools
Sous-catégorie (Sub-category): Loop Calibrator
Spécifications supplémentaires (Additional Specs): Current Range 0 - 24 mA Current Sourcing 0 - 20 mA or 4 - 20 mA Current Simulation 0 - 20 mA or 4 - 20 mA Loop Power 24 V DC Voltage Range 0 - 28 V DC Max. Voltage 30 V Approvals CSA C22.2 No. 1010.1:1992, EN50082-1:1992 and EN55022:1994 Class B Dimensions 152 x 70 x 41 mm Weight 340 g
Attributs (Attributes): Display Digital
Fonctionnalités (Features): Cost effective, integrated solution for calibration, repair, and maintenance of milliamp loops Simultaneous mA and % readout for quick, easy interpretation of readings Features push button 25% steps for fast, easy linearity checks Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests Runs on a single 9 V battery that is easily changed without breaking the calibration seal Features "span check" for fast confirmation of zero and span Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM Includes: AC70A alligator clips, C10 protective yellow holster with Flex-Stand™, Instruction sheet, TL75 safety-designed test lead set, NIST-traceable calibration report and data
Description de l’unité (Unit Description): Each
